ACE 1200

FUJICLEAN ACE1200

Download Approval Document Download Brochure

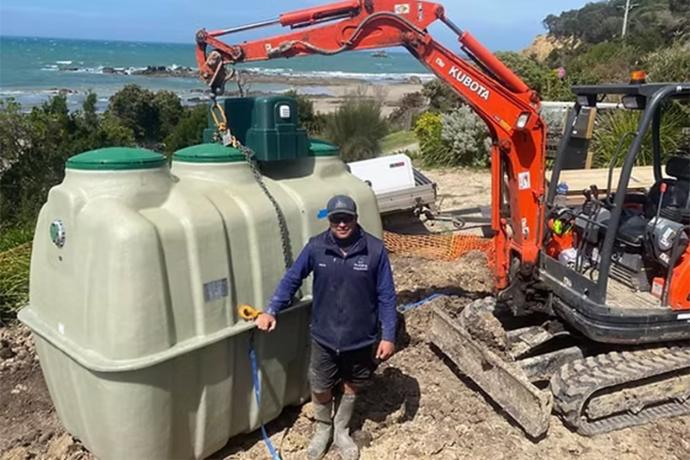

This Advanced, Compact and Efficient unit has been specifically designed using leading Japanese engineering technologies to achieve maximum operational efficiency without leaving a large footprint on the environment. Due to its lightweight and compact design, the Fuji Clean ACE system is extremely easy to transport and install.

ENQUIRE NOW !

We would love to talk about how we can help you !

FEATURES & BENEFITS

The perfect solution when building in an unsewered area or for upgrading a failing septic tank.

Compact

  • Lightweight single tank design.
  • Minimal footprint.
  • Visually discrete finished product.

Robust & Reliable

  • Proudly manufactured in Australia.
  • Self-equalising & effectively handles shock loading.
  • Dependable components & high quality perfor ...

Safe & Secure

  • Complete treatment process contained inside the tank.
  • Treatment process produces high quality effluent.
  • Alarm monitor protection.
...
Sustainable practices

  • Extended service life – 15 years’ minimum.
  • Minimal environmental impact.
  • Reuse all water for garden and lawn irrigation.

Efficient Processes & Procedures

  • Reduced transportation and installation costs.
  • Low operation and running costs.
  • Natural treatment process

Proven Design

  • Over 55 years’ experience in the onsite wastewater treatment industry.
  • Continual research and development of systems and treatment process
  • ...

Industry Standard Warranty
15 years – Structural tank warranty
2 years – Electrical Components

Advanced Treatment Technology

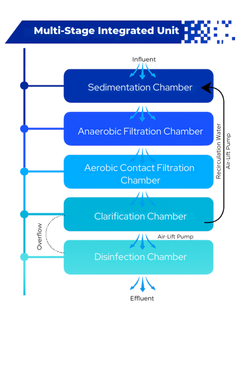

Contact Media Filtration – A 6 Stage Treatment Process.
The Contact Media Filtration process is the result of FujiClean’s commitment to researching and developing onsite wastewater treatment technology. This treatment process easily exceeds the requirements for Advanced secondary effluent quality (the highest treatment class in Australia.)
Techniques used in this treatment process:
– Anaerobic& aerobic digestion
– Specific flow management (baffles/partition walls)
– Effluent recirculation &sludge transfer
– Air-lift and flow-equalisation
Combining these techniques allows for optimum treatment to be carried out in the most efficient amount of tank space.

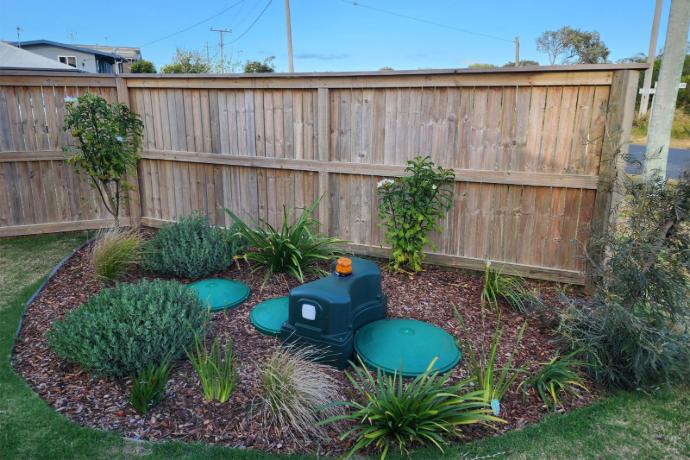

2.5 mtr x .7 mtr foot print after installation.

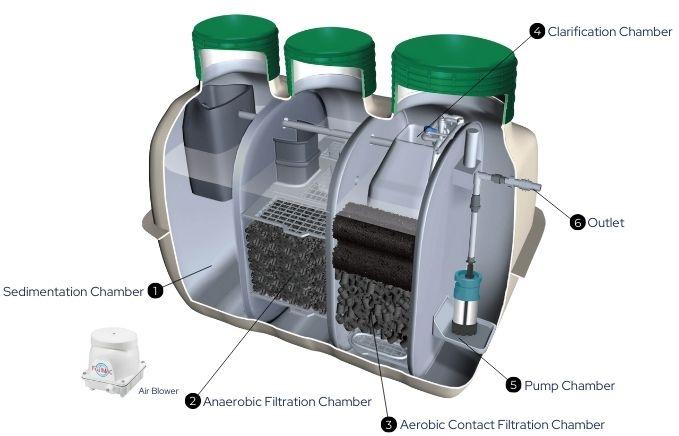

The ACE 1200 receives and treats the wastewater from the whole household. Toilets, bathrooms, laundry and kitchen. Advanced treated effluent is achieved by the whole process, including anaerobic and aerobic treatment. Microbes digest the waste throughout the three chambers, nitrogen is dramatically reduced by recirculation and consumption. Pathogens are removed (when required) by disinfection after the airlifting of the effluent from the clarification chamber. For best results, the influent should be free of any harmful products that will kill off the microbes.

Australian standard testing results.

Test Schedule Rate Overall averages (Influent) (34 weeks) Effluent test results (34 week average)
TSS mg/l 338.8 2.71
BOD 5 mg/l 355.6 < 2
Ammonia mg/l 56.7 2.24
Nitrite mg/l < .01 .97
Nitrate mg/l .05 6.21
Total nitrogen mg/l 70.63 14.79
Phosphorus mg/l 12.08 10.33
PH ------- 8.4 7.3
Alkalinity ------- 240 129.00

Why FujiClean

  1. First manufactured in the 1960’s.
  2. Millions of units installed.
  3. Advanced, compact, and efficient treatment plants
  4. National distributor network for installation and ongoing service
  5. Small foot print
  6. Manufactured in Australia
  7. Low electric pump and blower running costs. ($200-$300 per year).
  8. Ease of installation.

FujiClean ACE 1200

Power Usage

The FujiClean ACE 1200 Domestic AWTS is 100% compatible with homes using a stand-alone solar power system.

For the system to operate correctly it requires: A stable and continuous connection to a 10 amp 240V AC +/- 5% maximum and a frequency of 50Hz.

  • A suitable inverter is to be used. NOTE: Must allow for the ACE1200 energy requirements.
  • The power supply to have sufficient capacity to run all components without the voltage supply dropping when the load is applied.
  • A contingency plan if the house experiences long periods without power. NOTE: like any AWTS, prolonged periods without power will cause the bacteria to die off and result in system failure.

A standard 4 person household uses an average of 600-800L per day.

FujiSub 4520 submersible pump with a 20m head has a flowrate of 45L/min.

An average pump cycle for the FujiClean ACE 1200 is 10 minutes. Therefore with average loading, the FujiSub 4520 will activate and cycle 2-3 times per day.
Used for subsurface irrigation disposal.

FujiSub 756 submersible pump with an 8m head has a flowrate of 20L/min.

An average pump cycle for the FujiClean ACE 1200 is 15 minutes. Therefore with average loading, the FujiSub 756 will activate and cycle 2-3 times per day.
Used for surface irrigation disposal.

MAC100RII Air Blower runs 24 hours/day and provides 100L of aeration per minute.

Electrical Component Startup Amps Run Wattage / Amps Daily Usage
MKII Treatment Monitor Unit 3 W 3 W 24 hours
MAC100 RII Air Blower Less than 0.6A 68 Watts | 0.28 A 24 hours
FujiSub 756 Submersible Pump Less than 3.0 amps 550 watts | 2.1 A 0.6 hours
FujiSub 4520 Submersible Pump Less than 5.5 amps instant 800 watts | 3.2 A 0.6 hours
FujiSub 5025 Submersible Pump 50 LPM at a 25 mtr head Less than 7.0 amps 1000 watts| 4.0 A 0.6 hours

NOTE: Only one type of submersible pump is required If you require any further information on the FujiClean ACE-1200 energy requirements please contact FujiClean Australia Head Office on 1300 733 619 or [email protected]
