FujiClean PCN10, PCN15 & PCN20
The FujiClean PCN series represents FujiClean Australia's largest and most advanced single-tank commercial sewage treatment systems, engineered for high-capacity and site-specific wastewater management.
The PCN Sewage Treatment Plant (STP) is a fully integrated Advanced Wastewater Treatment System (AWTS), designed to treat between 10,000 and 20,000 litres of wastewater per day. It incorporates cutting-edge Japanese technology developed by FujiClean’s in-house team of engineers and scientists.

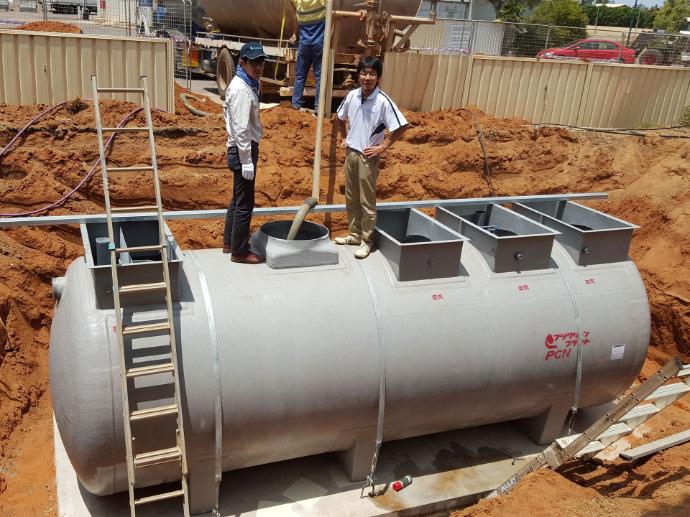

Because wastewater characteristics can vary across different locations, each PCN unit is custom-engineered to suit specific site conditions. The PCN10 and PCN20 models are manufactured in Japan using a single-tank design made from high-quality Fibreglass Reinforced Plastic (FRP), applied using the spray-up lamination method.

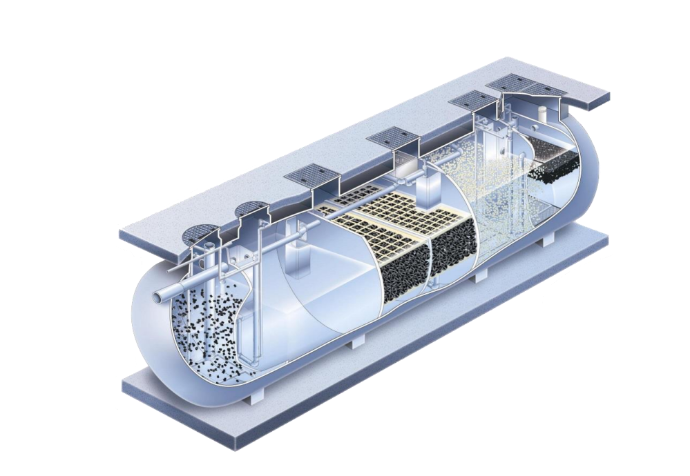

The tank structure consists of a cylindrical body with dome-shaped end caps, all seamlessly joined and reinforced with layers of FRP. The internal structure features steel ribs spaced at intervals of no more than 1,000 mm for added durability. Additionally, FRP support legs are attached at intervals of 3,000 mm or less to ensure stable installation on a concrete base.
Lightweight Composite Construction
Capacity
Advantages of FujiClean System
High Treatment Capacity
The PCN range includes models like the PCN10, PCN15, and PCN20, capable of treating up to 20,000 litres of wastewater per day
Site-Specific Engineering
Each PCN system is custom-designed to accommodate varying wastewater qualities and site conditions, ensuring optimal performance
Efficient Design
The single-tank configuration simplifies installation and reduces labour costs, making it a cost-effective solution for long-term, sustainable wastewater treatment
Energy Efficient
Equipped with FujiMAC RII series air blowers, the PCN systems are among the most energy-efficient in the commercial sewage treatment plant sector
Scalability
Multiple PCN units can be combined in parallel to meet higher treatment demands, offering flexibility for various project sizes
How do Fujiclean systems work?

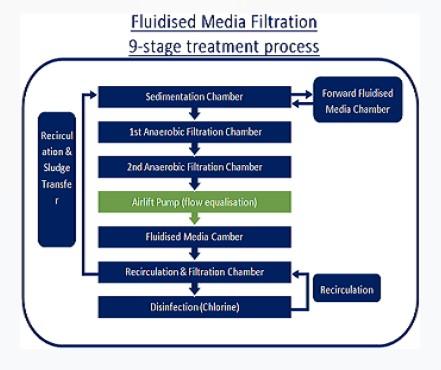

Fluidised Media Filtration – A 9-Stage Advanced Treatment Process
FujiClean’s Contact Media Filtration system reflects decades of dedicated research and innovation in onsite wastewater treatment technology. This highly effective process surpasses the standards for Advanced Secondary effluent quality—the highest classification in Australia.
The system integrates a combination of advanced techniques, including:
- Anaerobic and aerobic digestion
- Precision flow control through baffles and partition walls
- Effluent recirculation and sludge transfer
- Air-lift technology and flow equalisation
By strategically combining these processes, FujiClean delivers maximum treatment efficiency within a compact tank footprint, offering high performance with minimal environmental impact.
